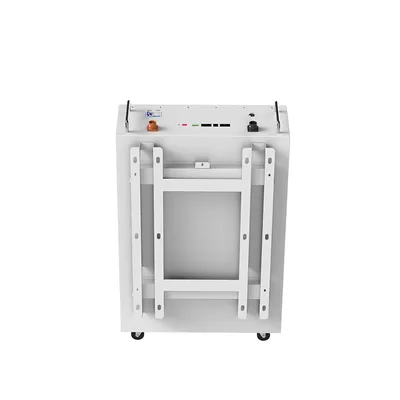

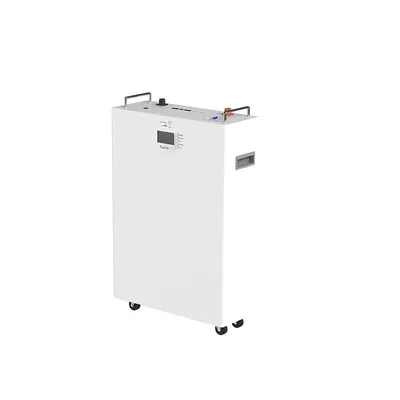

Durable Wall Mount Lithium Battery 200Ah Phosphate Lithium Battery

Request A Quote

< >

Product Detail

Place of Origin: China
Brand Name: Tuorde
Certification: CE/UN38.3
Model Number: RD-PW48200A

Item	TRD-PW48200A
Nominal Vattage(V)	48/51.2
Nominal Capacity(Ah)	200
Energy(Wh)	9600/10240
Dimension(mm)	675×W485×H190
Weight(Kg)	89/92
Discharge Cut-off Voltage(V)	40.5(15S)/43.2(16S)
Charge Cut-off Voltage(V)	54.7(15S)/58.4(16S)
Communication Port	R5485,RS232 CAN
Cell serial number(pcs)	15S/16S
Working Temperature	-10°C-60℃
Design life	10+Years (25°C/77°F)
Cycle life	>6000.25°C/77°F,80%DOD
Certification	CE/UN38.3
Supports the max number of parallel connections	16
Maximum continuous charge cur rent	100A
Maximum continuous discharge current	100A
